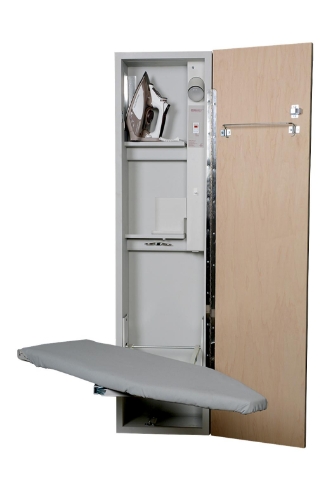

In Wall Ironing Board IronAWay UD-42
This Ironing center is designed for a person in a seated position. Our
metal ventilated board differentiates itself from the earlier wooden
ironing boards. The traditional built-in wooden board only needed to be
hard for the dry irons of the day. Today�s advanced steam irons are
designed to project bursts of steam to penetrate deep into the fabric.
This allows for removing wrinkles with less effort. Yet, using them on a
wooden ironing board caused a build-up of condensation on the board and
hot spots when ironing. Our metal ventilated board allows steam to pass
through the fabric keeping the surface dryer and providing a more
even-heated ironing surface.
Our
metal ventilated board differentiates itself from the earlier wooden
ironing boards. The traditional built-in wooden board only needed to be
hard for the dry irons of the day. Today�s advanced steam irons are
designed to project bursts of steam to penetrate deep into the fabric.
This allows for removing wrinkles with less effort. Yet, using them on a
wooden ironing board caused a build-up of condensation on the board and
hot spots when ironing. Our metal ventilated board allows steam to pass
through the fabric keeping the surface dryer and providing a more
even-heated ironing surface.
Not only is it convenient to store your iron inside the unit, but the location keeps the iron out of children�s reach.There�s no reason to let your iron cool down, the insulated heat shield allows for immediate shelving.The
hot iron storage area has been designed to accept the majority of
steam/dry irons available at retail, including many premium models.
Storage is not a problem with our ironing centers!All models will include an additional storage shelf, our 60" wood cabinets include two storage shelves. Keep all your ironing aids in one handy location!
No place to leave your iron when moving or turning your garment?Place
the iron in this handy heat resistant iron rest. This allows for more
usable space on the ironing board while making your garment
adjustments.This feature is standard on all 46" ironing boards and Model UD-42.
These
features allow for only the amount of cord required to iron by using
the electrical cord cover or wrap. You can easily guide the iron and
eliminate the excess cord from getting in your way.
These features are standard on all models numbers containing an "E" which defines "Electrical". The 60" cabinets will contain the electrical cord cover and the 52" cabinets will contain the cord wrap.
The garment bar is helpful when you have more than just a few garments to iron. The garment bar can hold multiple clothes hangers, making it more convenient to perform continuous ironing. This feature is standard on all other models except the IAW-42.
Do you want to create an environment that provides optimal surroundings when ironing out all the wrinkles?
When
ironing garments in insufficiently lighted areas, our spotlight will
enhance your ability to iron out those sometimes not found hard to spot
creases and crevices.
Models come standard with a flat maple unfinished veneer door. All wood doors come
unfinished and can be stained or painted to match your decor. White doors do
not require finishing. Mirror is full length, 1/4" plated glass with
polished edge. Mirrored door is shipped separate for added protection. No door
option is available to match your cabinetry. Keep in mind the door hardware is
not included when ordering a "No Door." This consists of the Piano
Hinge, Roller Catch Assembly, and Garment Bar. If you would like a "Door
Hardware Kit," add them by choosing this option within the Optional
Features section.
All models come standard with a wood door. Metal Door Overlays come painted
and ready to install over the standard wood door. Metal Door Overlay attaches
to front of wood door with permanent mounting tape.
Door Hardware consists of a Garment Bar, Roller Catch, and the Piano Hinge.
When placing an order for an ironing center, if you choose the no door option,
all door Hardware attached to door will not be included and you will receive a
price reduction. If you want the door hardware included, but not attached;
please select this option from the Optional Features Section. The door hardware
will be added back into the overall total.
The Maytag Smart Fill - M800 is a trendy iron and steamer in one. The
innovative removable water tank allows you to fill it while the iron is
heating. Heating takes less than one minute with the new speed heat technology.
The iron�s innovative controls for water spray and steam surge provides
dramatic results. The stainless steel sole plate enables the smoothest glide
and the 360 degree tangle free cord offers the ultimate freedom of motion. This
iron�s quality, design, and function will compliment your IRON-A-WAY ironing
center.
The sleeveboard is placed on top of the main board and used when you want to
iron sleeves or smaller garments that won't fit over the nose of your regular
ironing board. When in use, the sleeveboard rests on top of the main ironing
board, nothing holds it in place. Please note, when not in use the sleeveboard
is not stored inside the unit, it must be stored in another location than
inside the unit itself.
Additional Items:
The kit is necessary if planning to surface mount rather than installing in
between studs
60� Surface Mount Kit used for Models AE-46, E-46, NE-46 and UD-42
52� Surface Mount Kit used for Models AE-42, E-42, and NE-42
No Surface Mount Kit necessary for Model IAW-42
Surface Mount Kit finishes out back sides of unit for flush finish
Wood pieces can be stained or painted to match cabinet
Unit will protrude approximate 7� to 8� rather than 3� � 4� depending on which
model purchased
In Wall Ironing Board IronAWay UD-42
Overall height: 60 5/8�
Overall width: 15
�
Overa
ll depth including door: 7 3/4
�
Dimension
from wall to outer
edge of door (when recessed): 3
7/8
�
Penetration into opening: 3 7/8�
Wall opening height: 59 7/8
�
Wall opening width: 14 3/8
�
Wall opening depth: 3 7/8
Unit may be surface mounted (
unit extends
approximately 7 3/4
� into room) or recessed
(unit extends approximately 3
7/8
� into room)
into any wall
with standard 16� center studs.
�
See table bottom right to determine desired
ironing board height
above the floor.
The
user can adjust height of board after
installation with a 4� differential between a
maximum and minimum height.
�
Unit can be provided with a left hinged door
upon request. Right hinge is standard.
�
Comes standard with wood
veneer door.
�
Electrical requirem
ents: 115/120v, 15 amp.
Pigtai
ls are provided in bottom of wire
raceway for hookup to supply line. Make
entrance into knockout provid
ed
in top of
wire way through right
-
hand vent hole.
�
Recommended to attach 2� x 4� cleats to
studs, level with the bottom of opening (for
support when recessing unit.)
�
Door opens approximately 180�. Allow at
least 16� to the side of the unit for door to
sw
ing open (door hinges on full length piano
hinge.)
�
Options include: Surface mount trim
(necessary for
surface mounting), oak, maple,
pine, or white raised panel door, flat white
door,
glass m
irrored door, or no door
,
sleeveboard,
r
ough
-
in kit, and iron
