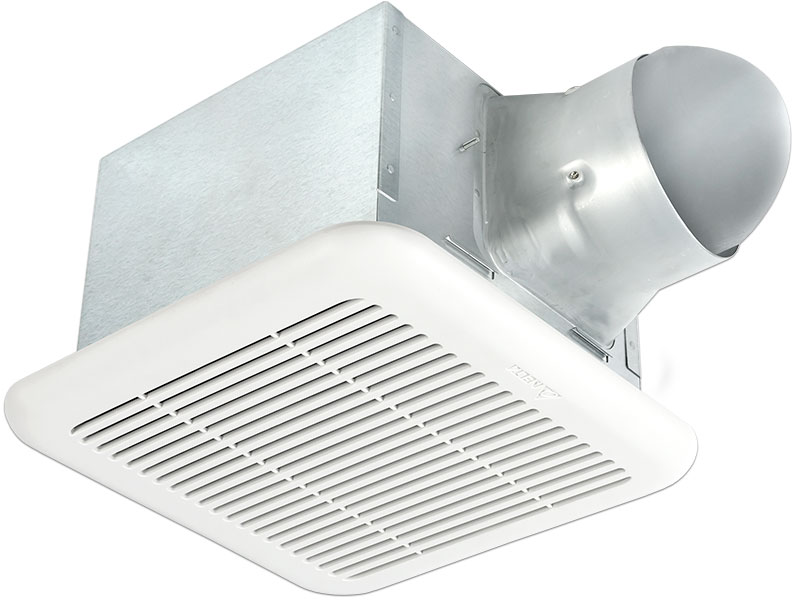

Delta SIG80-110H Bathroom Fan with Humidity Sensor
Innovative brushless DC motor design for long life, low noise, and low power consumption
The exceptional reliability of Delta’s Brushless DC Motor is combined with control options including adjustable continuous low speed down to 30 CFM. Delta Breez model SIG80-110H has been awarded ENERGY STAR® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and quiet operation at less than 0.3 Sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.2 Watts with efficiency rating of 15.3 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
SIG80-110H - 80/110 CFM Exhaust Fan with Humidity Sensor
| Fan Speed | Continuous Low Speed | Full Speed |
| Static Pressure | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 30 | 30 | 50 | 50 | 60 | 60 | 80 | 80 | 80 | 80 | 110 | 110 |
| Sones | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | 0.3 | <0.3 | 0.5 | <0.3 | 0.5 | <0.3 | 0.8 |
| Power Watts | 4.4 | 6.3 | 4.8 | 7.3 | 5.5 | 8.6 | 6.2 | 9.9 | 6.2 | 9.9 | 8.2 | 14.1 |
| Efficiency (CFM/Watts) | 9.0 | 5.9 | 13.5 | 8.0 | 13.3 | 8.0 | 15.4 | 9.0 | 15.4 | 9.0 | 15.3 | 8.7 |
| Current (Amps) | 0.38 Max |
| Power Rating (V/Hz) | 120/60 |
