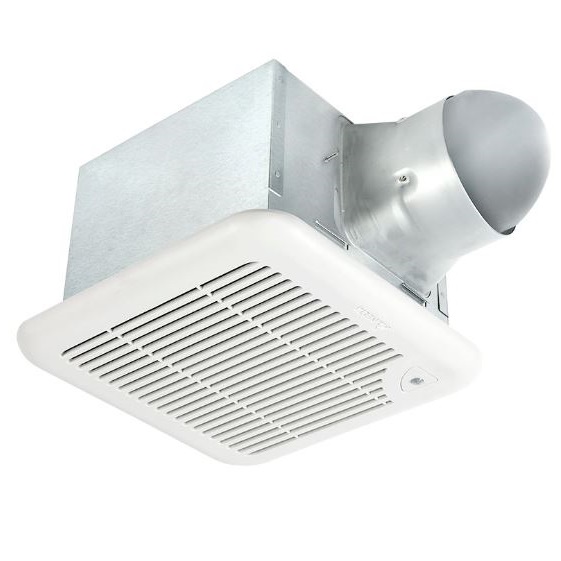

Delta SIG80-110MH Bathroom Fan with Humidity/Motion Sensor
Innovative brushless DC motor design for long life, low noise, and low power consumption
The Delta BreezSignature SIG80-110MH offers the full package of performance and control. The exceptional reliability of Delta’s brushless DC motor is combined with control options including: motion sensing, humidity sensing and an adjustable continuous low speed down to 30 CFM. BreezSignature SIG80-110MH boasts sound ratings of less than 0.3 Sones and operating efficiencies that far exceed ENERGY STAR v4.0 Residential Ventilating Fan requirements. HVI, UL, and cUL certified. Compliant with ASHRAE 62.2 (local and whole building continuous and intermittent operation) and meets CA Title 24 requirements.
SIG80-110MH - 80/110 CFM Exhaust Fan with Humidity Sensor
| Fan Speed | Continuous Low Speed | Full Speed |
| Static Pressure | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 30 | 30 | 50 | 50 | 60 | 60 | 80 | 80 | 80 | 80 | 110 | 110 |
| Sones | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | 0.3 | <0.3 | 0.5 | <0.3 | 0.5 | <0.3 | 0.8 |
| Power Watts | 4.4 | 6.3 | 4.8 | 7.3 | 5.5 | 8.6 | 6.2 | 9.9 | 6.2 | 9.9 | 8.2 | 14.1 |
| Efficiency (CFM/Watts) | 9.0 | 5.9 | 13.5 | 8.0 | 13.3 | 8.0 | 15.4 | 9.0 | 15.4 | 9.0 | 15.3 | 8.7 |
| Current (Amps) | 0.38 Max |
| Power Rating (V/Hz) | 120/60 |
