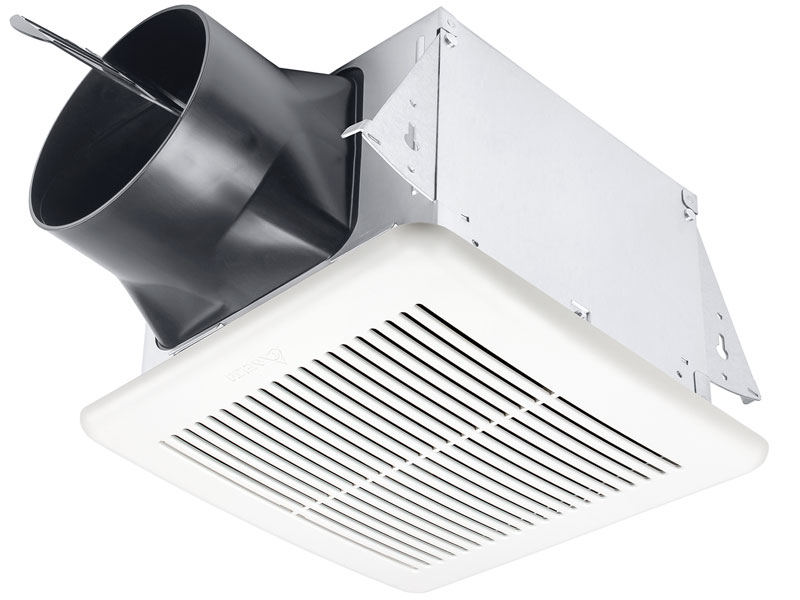

Bathroom Fan- Delta ELT80-110
Breez ELT80-110 ENERGY STAR® qualified fan is the perfect fit for room side installation, featuring installer-friendly pocket mounting brackets & adjustable high-speed options for an affordable price.
Delta BreezElite ELT80-110 is ENERGY STAR® Most Efficient award product, affordable ventilation fan with adjustable high speed options and exclusive, installer-friendly room-side installation system.
Innovative brushless DC motor design for long life, low noise, and low power consumptionDelta Breez model ELT80-110 has been awarded ENERGY STAR
® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 0.7 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 10.3 Watts with efficiency rating of 10.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
ELT80-110 - 80/110 CFM Exhaust Fan
| 6" Duct Standard |
| Static Pressure (inches w.g.) | 0.1 | 0.25 | 0.1 | 0.25 |
| Air Flow (CFM) | 80 | 59 | 110 | 90 |
| Sones | 0.5 | 0.9 | 0.7 | 1.0 |
| Power Consumption (Watts) | 7 | 9 | 10.3 | 13 |
| Energy Efficiency (CFM/Watts) | 11.4 | 6.5 | 10.6 | 6.9 |
| Current (Amps) | 0.27 Max |
| Power Rating (V/Hz) | 120/60 |
