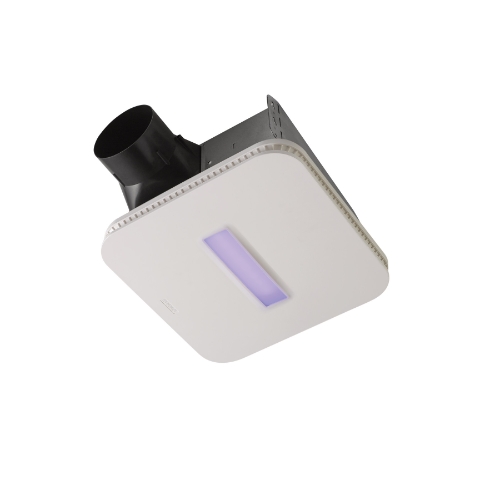

Broan AR110 Invent™ Series Bathroom Fan
INVENT™ SERIES FANS
This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor
Recommended Room Size (Sq. Ft.) | | 105 |
---|
CFM | | 110 |
---|
Sones | | 3.0 |
---|
Room Side Installation | | Yes |
---|
Duct Diameter | | 4" |
---|
Housing Height | | 5-3/4" |
---|
Housing Length | | 9-1/4" |
---|
Housing Width | | 10" |
---|
Grille Length | | 11-1/2" |
---|
Grille Width | | 12-1/4" |
---|
Rated Amps | | 0.4 |
---|
Watts | | 47.3 |
---|
ENERGY STAR® certified product | | No |
---|
Warranty | | 1 year limited |
---|
Nightlight | | No |
---|
Minimum Construction Space Required | | 2" x 6" |
---|
Motor Engineered for Continuous Operation | | Yes |
---|
Radiation Damper Available | | Yes |
---|
Voltage | | 120 |
---|
UL Listed | | Yes |
---|
