Broan AE50 InVent Exhaust Fan

Price: $98.64
    Item #: AE50
    There are no reviews yet. | Write a review

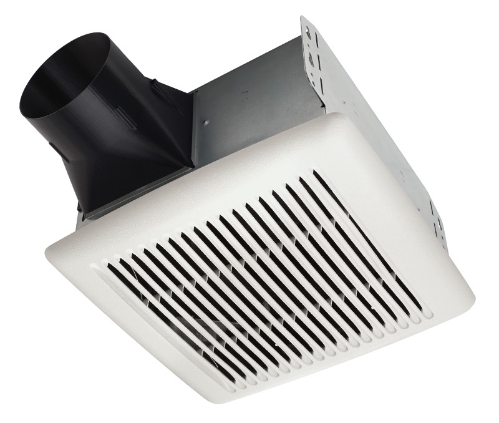

    Broan AE50 InVent Exhaust Fan


    This exhaust fan 50 cfm, .5 sones, energy star rated, is ideal for your small bathroom or powder room. This exhaust fan with cover up to 45 square feet and will clear all your smell and steam from your room. This exhaust fan is easy to retro fit as it has a duct collar that goes into the can, making it so you do not have to go into your attic. The rough in dim 9.25x10x 5 3/4. The finish grille size is 11.5x 12.25, great for covering up older fixtures that you have removed. For quiet and efficient operation, long life, and attractiveappearance, lower or remove grille and vacuum interior of unit with the dusting brush attachment. The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly. This new fan will make any bathroom more attractive.

    50 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 45 square feet, so your vision will always be clear and your surroundings will always be comfortable

    Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something elseWith our TrueSeal™ Damper Technology, InVent fans reduce air leakageby up to 50%* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts

    EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier

    UL Listed for use over tubs and showers with a GFCI circuit; so you

    can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

    100W max. incandescent A19 type bulb or energy efficient equivalent

    bulb with Maximum Overall Length (M.O.L.) of 4.4" or less (bulb not included)

    Bathrooms up to (X) Square Feet

    45

    Ceiling Installation

    Yes

    CFM @ 0.10"

    50

    CFM @ 0.25"

    37

    Color

    White

    CSA

    No

    cUL Listed

    No

    Duct Direction

    Horizontal

    Duct Size

    4"

    ENERGY STAR® qualified

    Yes

    Globe Glass Color

    N/A

    Grille Finish

    White Polymeric

    Grille Length

    11-3/8"

    Grille Width

    12"

    Heater wattage

    N/A

    Housing Dimension LxWxH

    9-1/4" x 10" x 5-3/4"

    Housing Height

    5-3/4"

    Housing Length

    9-1/4"

    Housing Width

    10"

    Humidity Sensing

    No

    HVI Certified

    Yes

    Light Bulb Quantity

    N/A

    Light Bulb Wattage

    N/A

    Light Bulbs Included

    No

    Lighting Type

    No Light

    Minimum construction space required

    2x6

    Motion Sensor

    No

    Motor engineered for continuous operation

    Yes

    Nightlight

    No

    Product Weight

    10.0 lbs

    Project Pack

    No

    Radiation Damper Available

    Yes

    Rated Amps

    0.2

    Rated Watts

    20.0

    Room-Side Installation

    Yes

    Sones

    0.5

    UL Listed for use over bathtubs or showers when connected to a GFCI circuit

    Yes

    Wall Installation

    No

    Warranty

    1 Year

    Broan AE50 InVent Exhaust Fan


    ENERGY STAR® qualified

    Yes

    Globe Glass Color

    N/A

    Grille Finish

    White Polymeric

    Grille Length

    11-3/8"

    Grille Width

    12"

    Heater wattage

    N/A

    Housing Dimension LxWxH

    9-1/4" x 10" x 5-3/4"

    Housing Height

    5-3/4"

    Housing Length

    9-1/4"

    Housing Width

    10"

    Humidity Sensing

    No

    HVI Certified

    Yes

    Light Bulb Quantity

    N/A

    Light Bulb Wattage

    N/A

    Light Bulbs Included

    No

    Lighting Type

    No Light

    Minimum construction space required

    2x6

    Motion Sensor

    No

    Motor engineered for continuous operation

    Yes

    Nightlight

    No

    Product Weight

    10.0 lbs

    Project Pack

    No

    Radiation Damper Available

    Yes

    Rated Amps

    0.2

    Rated Watts

    20.0

    Room-Side Installation

    Yes

    Sones

    0.5

    UL Listed for use over bathtubs or showers when connected to a GFCI circuit

    Yes

    Wall Installation

    No

    Warranty

    1 Year
