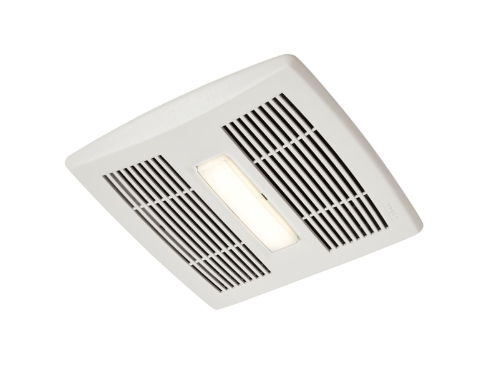

Broan AE110L InVent Exhaust Fan and Light
This exhaust fan 110 cfm, 1.3 sones, energy star, Led lighted 3000K or 11 watt. This is ideal for your small bathroom or powder room. This exhaust fan with cover up to 75 square feet and will clear all your smell and steam from your room. This exhaust fan is easy to retro fit as it has a 4” duct collar that goes into the can, making it so you do not have to go into your attic. This lighted exhaust fan has a no light. The rough in dim 9.25x10x 5 3/4. The finish grille size is 11.5x 12.25, great for covering up older fixtures that you have removed. For quiet and efficient operation, long life, and attractive appearance, lower or remove grille and vacuum interior of unit with the dusting brush attachment. The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly. This new fan will make any bathroom more attractive.
110 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 105 square feet, so your vision will always be clear and your surroundings will always be comfortable
Retrofit installations can be done entirely from the room side no attic access required. This means a faster, easier installation, so you can move on to something else
With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50%* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
EzDuct 4”Connector can be installed room-side with no attic access required, fan housing connection have never been easier
ENERGY STAR® Qualified
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most.
Includes 11 watt, 3000K, integrated LED module for energy efficiency
Broan AE110L InVent Exhaust Fan and Light
Bathrooms up to (X) Square Feet | 105 |
Ceiling Installation | Yes |
CFM @ 0.10" | 110 |
CFM @ 0.125" | N/A |
CFM @ 0.25" | 80 |
Color | White |
CSA | No |
UL Listed | Yes |
Duct Direction | Horizontal |
Duct Size | 4" |
ENERGY STAR® qualified | Yes |
Globe Glass Color | N/A |
Grille Finish | White Polymeric |
Grille Length | 11-3/8" |
Grille Width | 12" |
Heater wattage | N/A |
Housing Dimension LxWxH | 9-1/4" x 10" x 5-3/4" |
Housing Height | 5-3/4" |
Housing Length | 9-1/4" |
Housing Width | 10" |
Humidity Sensing | No |
HVI Certified | Yes |
Light Bulb Quantity | 11 Watt |
Light Bulb Wattage | 3000K |
Light Bulbs Included | Yes |
Lighting Type | LED |
Minimum construction space required | 2x6 |
Motion Sensor | No |
Motor engineered for continuous operation | Yes |
Nightlight | No |
Product Weight | 10.0 pounds |
Project Pack | No |
Radiation Damper Available | Yes |
Rated Amps | 0.3 |
Rated Watts | 26.9 |
Room-Side Installation | Yes |
Sones | 1.5 |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Wall Installation | No |
Warranty | 3 Years |
Watts @ 0.1" | 26.9 |
