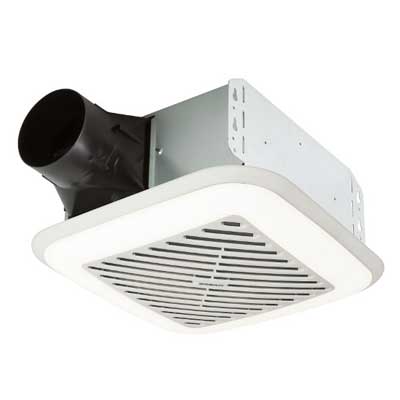

INVENT™ SERIES FAN/LIGHTS
This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. With fresh grille designs and a full range of operating points, there’s an InVent Series solution for every installation.
Recommended Room Size (Sq. Ft.) | | 105 |
---|
CFM | | 110 |
---|
Sones | | 1.5 |
---|
Light Bulb Quantity | | 1 |
---|
Recommended Light Bulb Type | | Integrated LED Module |
---|
Light Bulb Wattage | | 12 |
---|
Room Side Installation | | Yes |
---|
Duct Diameter | | 4" |
---|
Housing Height | | 5-3/4" |
---|
Housing Length | | 9-1/4" |
---|
Housing Width | | 10" |
---|
Grille Length | | 12-5/8" |
---|
Grille Width | | 12-5/8" |
---|
Rated Amps | | 0.5 |
---|
Watts | | 23.4 |
---|
ENERGY STAR® certified product | | Yes |
---|
Warranty | | 3 year limited |
---|
Lighting Type | | LED |
---|
Light Bulbs Included | | Yes |
---|
Nightlight | | No |
---|
Minimum Construction Space Required | | 2x6 |
---|
Motor Engineered for Continuous Operation | | No |
---|
Radiation Damper Available | | No |
---|
Voltage | | 120 |
---|
UL Listed | | Yes |
---|
